List Price: $38.00
Our Price: $38.00
Availability: N/A
Manufacturer: DW Electro Chemical Ltd.
|
Average Customer Rating: [ not yet rated ]
|
|
Binding: Misc.
Brand: D.W. Electrochemical
Feature: Best Contact Enhancer Available
Label: DW Electro Chemical Ltd.
Manufacturer: DW Electro Chemical Ltd.
Model: 22-5/30
Publisher: DW Electro Chemical Ltd.
Studio: DW Electro Chemical Ltd.
|
|
|
Features
|
Best Contact Enhancer Available
Recommended by VW
Used By Avionics Pros
|
|
|
Editorial Reviews:
|

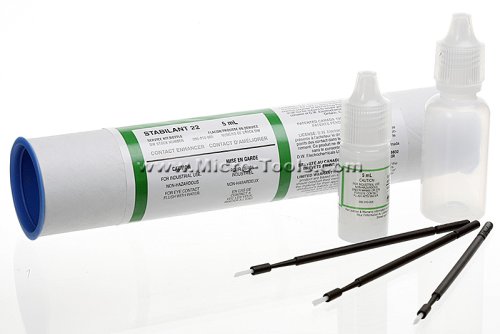

Stabilant 22 is an electrically active material which stays resident within a contact-pair, there enhancing conductivity without causing electrical leakage between adjacent contacts. Although Stabilant 22 does have a detergent action it is not sold as a cleaner, just as it has a good lubricant action but is not sold as a lubricant. Stabilant 22 is used to increase the reliability of contacts. Tenfold to one hundred-fold increases are not unusual. At the present time it is used in many different types of contacts, including card-edge connectors, D-type connectors, MIL-spec connectors, signal switches, etc.
Stabilant 22 is an initially non-conductive amorphous-semiconductive polyoxyethylene-polyoxypropyline block polymer with a molecular weight of about 2800 that, when used in thin films between contacts, acts under the influence of the electrical field and switches to a conductive state. The electric field gradient at which this occurs is established during manufacture so that the material will remain normally non-conductive. Its switching speed is too slow to allow it to be used in the more traditional semiconductor applications; however, this means that signals at frequencies substantially above five cycles per hour will not be modulated by the switching characteristics of Stabilant 22.
|
|
|
|
|
|
