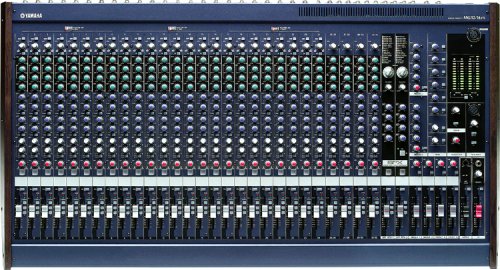

Yamaha MG32-14FX Mixing Console 32 Channels 14 Bus 12 Segment Meters 3 band EQ Talkback-Input
|
List Price: $1,299.00
Our Price: $1,099.00
Your Save: $ 200.00 ( 15% )
Recent Price Activity
Availability: N/A
 *Eligible orders over $25 ship free
Manufacturer: YAMAHA
|
Average Customer Rating: [ not yet rated ]
|
|
Brand: Yamaha
Feature: 32 Input Channels.
Label: YAMAHA
Manufacturer: YAMAHA
Publisher: YAMAHA
Special Features: nv: Mic^241 Input A 1 - 24, Talk Back XLR | Line^24 Input B 1 - 24 TRS | CH Input^Specifications | Crosstalk^-70dB 1kHz | Input Hum Noise1^-128dB20 Hz - 20 kHz, Rs150 , Input GainMaximum, Input Pad OFF, Input sensitivity-60 dB | Model^MG32-14FX | Product Type^Mixing Console | Total Harmonic Distortion^Less than 0.1 THDN20 Hz - 20 kHz 14 dB 600 ST OUT | Frequency Response^0 1, -3 dB20 Hz - 20 kHz 4 dB 600 ST OUT | Stereo^2 Ch 25 - 26, 27 - 28TRS Ch25, 27L MONO2 Ch 29 - 30, 31 - 32 TRSRCA
Studio: YAMAHA
|
|
|
Features
|
32 Input Channels.
24-Mono Microphone and 4 Stereo.
Talkback Input.
Low-noise, High-precision Mic Preamps.
Switchable Phantom Power.
|
|
|
Editorial Reviews:
|
The MG32-14FX feature 24-mono microphone and 4 stereo channels. Gain trim covers a wide 60dB -16dB range for microphone input, and -34dB 10dB for line input. Peak indicators are also provided for effect input gain setup. All mic preamps feature switchable 48V phantom power for phantom-powered studio condenser microphones. Phantom power is switchable in 8-channel groups. All input channels feature six AUX send controls. AUX sends 1 through 4 are prepost switchable while AUX 5 and 6 are post-fader sends. Two effect sends are also provided. You choose you have plenty of flexibility for external signal processing and monitoring in live sound-reinforcement applications. Two stereo auxiliary returns are included, as well as return facilities for the internal effect stages. In addition to the main L and R XLR and phone-jack stereo outputs, these versatile mixers also offer L and R phone-jack sub-stereo, pin-jack recording, XLR mono, and stereo phone-jack headphone outputs. You have plenty of outputs for a wide range of applications monitoring, master recorder feed, etc. Phone-jack group outputs are also provided to allow independent output of the group bus mixes. One of the many uses for a mono output is to drive a subwoofer system. The MG2414FX and MG3214FX make this easier than ever with a built-in 80 120 Hz sweepable low-pass filter on the mono outputs. Output level monitoring is made accurate and easy with four high-visibility 12-segment level meters that can be switched to display the stereo, group, 2TR input, PFL Pre-fader Listen, and AFL After-fader Listen signal levels. Reliable, high-performance 60-millimeter faders provide smooth, noise-free level control. while original Yamaha illuminated ON ST buss assign, PFL Pre-Fader Listen, and phantom power switches provide easy visual confirmation of critical console settings.
|
|
|
|
|
|
|
|
